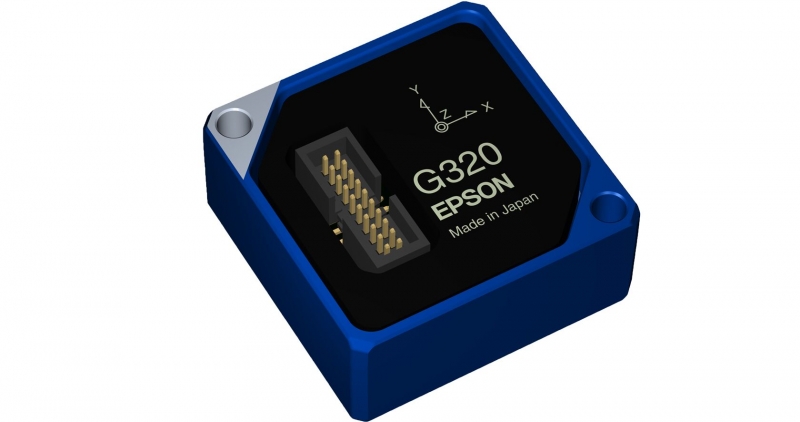

The EG320N is a Micro Electromechanical System (MEMS) IMU from Epson. It features low noise gyros and accelerometers in a small, lightweight enclosure. The EG320N enables precision measurements for applications that require low cost, high performance and rugged durability in a very small form factor. When integrated with NovAtel’s SPAN technology, this IMU is ideal for size constrained applications that require accurate 3D position, velocity and attitude data.
Features
-
Economical
-
Non-ITAR IMU
-
Low noise commercial grade gyros and accelerometers
-
Small size and lightweight
-
125 Hz data rate
-
Direct SPI Interface to OEM7 receivers
-
SPAN INS functionality
Attributes
| General Info | Length (mm) | 24 |
| Width/diametre (mm) | 10 | |
| Height (mm) | 24 | |
| Weight (g) | 10 | |
| Gyro Type | MEMS | |
| Performance | Gyro Input Range | ±150 deg/sec |
| Bias Repeatability | 0.5 deg/sec | |
| Angular Random Walk | 0.1 deg/√hr | |
| Accelerometer Range | ±5 g | |
| Accelerometer Bias Repeatability | 15 mg |
