• Auto Learning using Intelligent Steering Technology — IST
• Auto Setup — automatic drive detection, automatic pilot calibration
& automatic compass compensation
• Auto Sea State adjustment for reliability in all weather conditions
• Sunlight Viewable TFT LCD or silver backed high contrast monochrome LCD
• Work Mode — Superbly suited for professional performance on vessels
requiring ultimate rudder response
• Adjustments can be made “on the fly”
• Advanced Power Features include automatic helm bias, automatic leeway
control for minimizing course errors due to wind and tide
• Automatic Thruster assist for dead-ahead slow or station keeping (option)
• Proportional Rate Control to provide gentle smooth response at fast
cruising speeds
• NAV Mode provides adaptive precise track steering
• NMEA 0183 input/output ports
• Quick Turn Selection — continuous circle, U-turn, Emergency MOB
to steer the Williamson-Recovery turn
• FISH ZAG to allow the sport fisher to mimic the actions of live prey
more closely
• Simple touch 8 button illuminated keypad
• Multi-language capability configurable in English, French, Italian,
Spanish and Icelandic
• Universal Mount — surface mount, flush mount or bracket mount
• Waterproof — Control head to commercial grade IP67 standards
• CE compliance for EMI and RFI immunity
• Extended 3 year warranty
SPECIFICATIONS
Operating Voltage: 10 to 30 VDC
Power Consumption: Average 0.5 Amps, 3 Amps Peak
(Lower consumption capability with low backlight setting)
Drive Output: 20 Amps
Navigational Interface: Dual NMEA 0183 inputs
NMEA 0183 Output: Heading (10x per sec), Autopilot Status
(1x per sec)
Heading Reference: Fluxgate, Magnetic Compass, NMEA
Compass or Heading Sensor G2/G2B GPS compass
Course Resolution: 1°
Course Detection: 0.1°

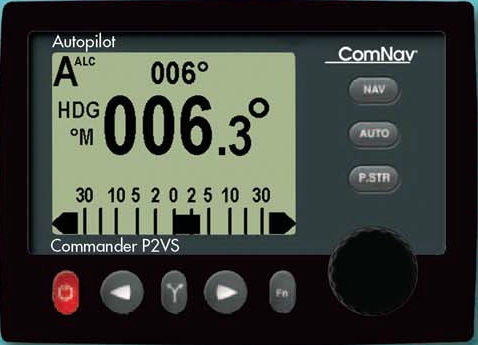

Control Head: Sunlight viewable high contrast LCD is
available in color or monochrome version; QVGA (320 x 240)
high resolution display
